Broadband Solutions
Energy-Efficiency Labelling
Kontron has committed to using energy-efficiency labels for all of its new broadband products.
GPON FTTH Home Gateways
For optical access,
Iskratel Innbox G-series of GPON home gateways delivers an unrivalled subscriber experience.
The family spans from first-class G10x and G9x models to cost-sensitive G2x models, ideal for dual-box setups.
Innbox G100 series
Supreme GPON home gateways with multi-gigabit connectivity and unbeatable Wi-Fi 7 guarantee uncompromised experience with advanced services and multiple ultra-high-definition video streams, delivered over wired or wireless home network.
With MU-MIMO, concurrent dual- or tri-band Wi-Fi 7 and gigabit mesh Wi-Fi, wireless experience is never compromised.
Integrated fibre-termination unit simplifies installation, reduces investment costs and provides efficient protection of fibre termination, coiling and splice.
Highlights:
- Powerful home gateway for advanced services and multiple HDTV IP streams.
- Multiple local interfaces (wired and wireless).
- Superior wireless experience with Wi-Fi 7 and multi-user MIMO (MU-MIMO).
- EasyMesh™-compliant mesh Wi-Fi controller.
- Fully featured router and firewall, secure wireless transmission and authentication.
- Integrated fibre-termination unit.

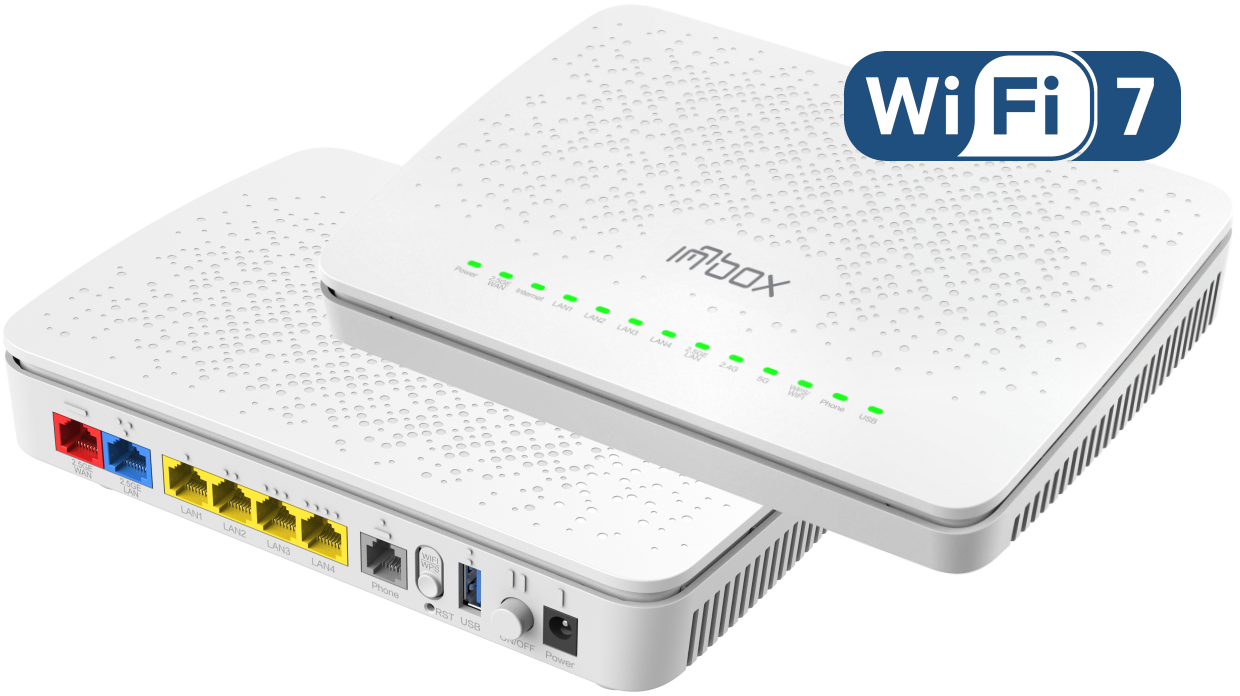

Innbox G104
High-end GPON Home Gateway and EasyMesh™ Wi-Fi Controller
- One 2.5GE and four GE LAN ports (RJ-45).
- Dual-band Wi-Fi 7 (802.11be) with 2×2:2+3×3:2 MU-MIMO.
- 3,600 Mbps cumulative Wi-Fi data rate (BE3600).
- EasyMesh™-compliant mesh Wi-Fi controller.
- One FXS port, one USB port.
- Integrated fibre-termination unit.
- Tactile markings for users with sight loss.
Innbox G90 series
Supreme GPON home gateways for advanced triple-play services, delivering the latest fibre GPON access technology and providing a high-end networking solution.
With MU-MIMO, concurrent dual-band Wi-Fi and support for gigabit mesh Wi-Fi, wireless experience is never compromised on numerous wireless clients.
Integrated fibre-termination unit reduces investment costs and installation time.
Highlights:
- Powerful home gateway for offering triple-play services and multiple HDTV IP streams.
- Multiple local interfaces (wired and wireless).
- Superior wireless experience with Wi-Fi 6 and multi-user MIMO (MU-MIMO).
- EasyMesh™-compliant mesh Wi-Fi controller.
- Fully featured router and firewall, secure wireless transmission and authentication.
- Integrated fibre-termination unit.
Innbox G94
Supreme GPON Home Gateway and EasyMesh™ Wi-Fi Controller
- One 2.5GE and four GE LAN ports (RJ-45).
- Dual-band Wi-Fi 6 (802.11ax) with 4×4+4×4 MU-MIMO.
- 3,600 Mbps cumulative Wi-Fi data rate (AX3600), with up to 260 sq. m coverage.
- EasyMesh™-compliant mesh Wi-Fi controller.
- One FXS port, one USB port.
- Integrated fibre-termination unit.
Innbox G93
Top-of-the-line GPON Home Gateway and EasyMesh™ Wi-Fi Controller
- Four GE LAN ports (RJ-45) and one optional additional 2.5GE LAN port (RJ-45).
- Dual-band Wi-Fi 6 (802.11ax) with 2×2:2+3×3:2 MU-MIMO.
- 3,000 Mbps cumulative Wi-Fi data rate (AX3000), with up to 250 sq. m coverage.
- EasyMesh™-compliant mesh Wi-Fi controller.
- Two FXS ports, one USB port.
Innbox G92
High-end GPON Home Gateway and EasyMesh™ Wi-Fi Controller
- Four GE LAN ports (RJ-45).
- Dual-band Wi-Fi 6 (802.11ax) with 2×2+2×2 MU-MIMO.
- 1,800 Mbps cumulative Wi-Fi data rate (AX1800), with up to 230 sq. m coverage.
- EasyMesh™-compliant mesh Wi-Fi controller.
- Two FXS ports, one USB port.
- Integrated fibre-termination unit.
Innbox G20 series
Super-compact and cost-optimised ONTs with full-gigabit throughput are ideal for dual-box deployment.
They feature a powerful forwarding engine with assured QoS and support for multicast video.
Operating along with a separate router, home gateway or a Wi-Fi access point, the flexibility of Innbox G23 is limited only with operator imagination.
Highlights:
- Data rates up to 2.5 Gbps in downstream and 1.25 Gbps in upstream.
- Powerful forwarding engine for advanced services and multiple UHD TV streams.
- Gigabit Ethernet LAN ports.
- Fully manageable remotely with complete FCAPS support.
Innbox G23+
Stylish and super compact GPON ONT
- One GE LAN port (RJ-45).
- Ideal for dual-box FTTH setups, in single- or multi-operator environments.
- Integrated fibre-termination unit.
- Clickable snap-on design with Innbox FTU.
Innbox G23
Stylish and super compact GPON ONT
- One GE LAN port (RJ-45).
- Ideal for dual-box FTTH setups, in single- or multi-operator environments.
